Torch-On Membrane vs PU Injection: Which Should You Choose?

Choosing the Right Waterproofing Method

When it comes to waterproofing flat RC roofs, concrete slabs, and industrial surfaces in Singapore, Torch-On Bitumen Membranes and Polyurethane (PU) Liquid Coatings are the two undisputed heavyweights. Living in a tropical climate means our buildings are constantly subjected to extreme UV radiation, torrential monsoon downpours, and high humidity levels. These aggressive environmental factors rapidly degrade inferior waterproofing materials, leading to severe structural water damage and costly indoor leaks.

Understanding the technical differences between these two premium systems is crucial for selecting the right long-term solution for your property. While both systems are designed to create an impenetrable barrier against water ingress, their physical properties, application methods, and ideal use cases differ significantly. Making the wrong choice can lead to premature membrane failure, blistering, and the need for expensive re-works within just a few years. In this comprehensive guide, we will break down the pros and cons of both systems, delve into the costs of roof leak repairs in 2026, outline the contractor engagement process, and provide actionable tips on leak prevention.

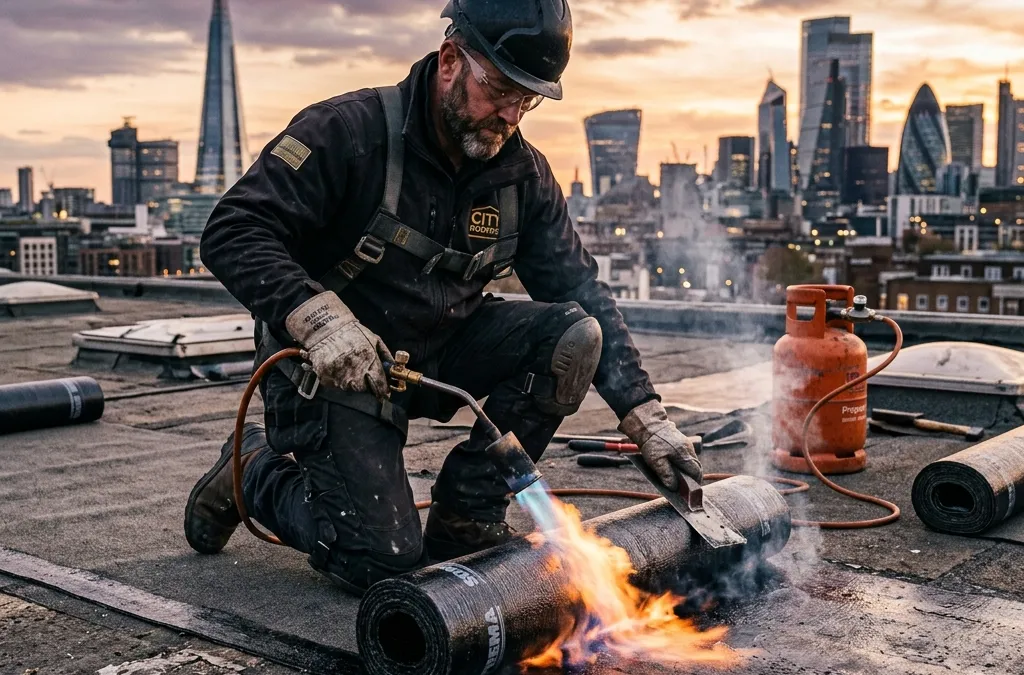

Torch-On Bitumen Membrane

The Torch-On Bitumen Membrane is the heavy-duty workhorse of the commercial roofing industry. This traditional, robust method involves using a high-powered, open-flame blowtorch to melt a thick layer of modified bitumen (a sticky, black, and highly viscous liquid or semi-solid form of petroleum) rolled directly onto a carefully primed concrete roof surface. As the bitumen melts, it fuses to the concrete and to the adjacent membrane sheets, creating an incredibly tough, highly impermeable barrier.

The Application Process

Applying a torch-on membrane requires intense precision. The concrete substrate must first be thoroughly cleaned and coated with a specialized bitumen primer. The rolls of membrane (typically 3mm to 4mm thick) are then meticulously rolled out. The installer uses a gas torch to melt the underside of the roll while simultaneously pressing it firmly onto the substrate. Crucially, the overlapping seams between adjacent rolls must be perfectly torched and fused together, as these joints are the most common failure points if not executed flawlessly by skilled technicians.

Pros

• Unmatched Durability: When applied correctly, a high-quality torch-on membrane can easily last 15 to 20 years, even under the brutal Singaporean sun.
• Exceptional Puncture Resistance: The sheer thickness of the membrane makes it highly resistant to physical damage from heavy foot traffic, dropped tools, or heavy equipment maintenance (like servicing AC compressors).
• Ideal for Massive Flat Roofs: It remains the absolute best, most cost-effective solution for sprawling, totally exposed areas like main HDB RC roofs, factory rooftops, and commercial building decks.

Cons

• Hazardous Installation: Requires highly skilled, certified professional installation using hazardous open flames, which carries strict fire safety risks and requires specialized permits in some commercial areas.
• Inflexible Application: Can be extremely difficult, messy, and prone to error when applied on roofs with complex geometric shapes, numerous protruding ventilation pipes, or cramped corners where rolling out a large, stiff sheet is impractical.

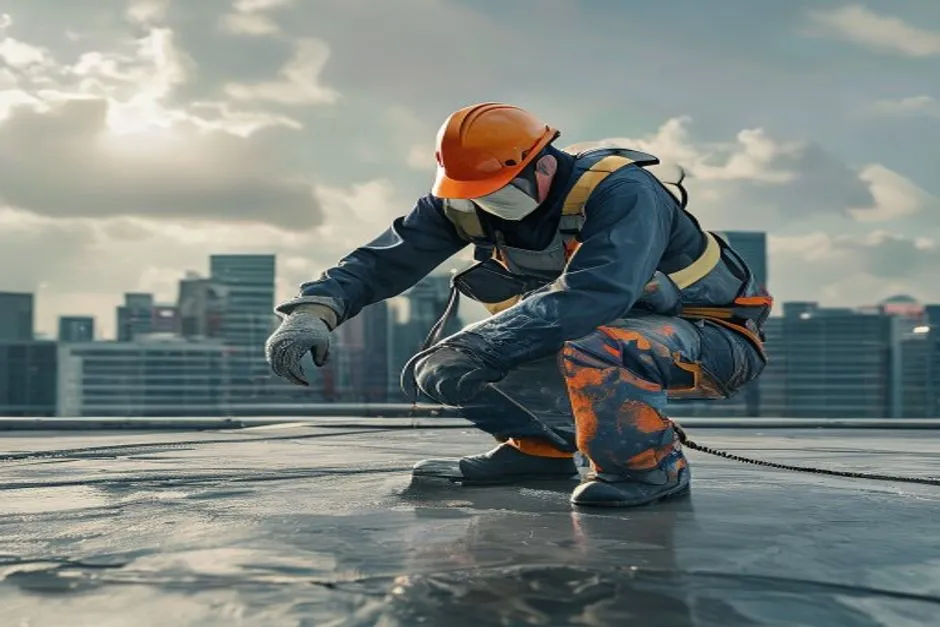

Polyurethane (PU) Liquid Coating

In contrast to the heavy, rigid rolls of bitumen, Polyurethane (PU) waterproofing comes in a cold, highly viscous liquid form. It is typically applied in multiple coats using industrial rollers, brushes, or airless sprayers. Once applied, the liquid reacts with the ambient moisture in the air and cures to form a continuous, seamless, rubber-like membrane that adheres tightly to the contour of the substrate.

The Application Process

The concrete must be meticulously cleaned, repaired (cracks patched), and completely dried. Any trapped moisture in the concrete will cause the PU coating to bubble and blister during the curing process. A primer is applied, followed by the base coat of PU liquid. Often, a reinforcing fiberglass mesh is embedded into the wet base coat for added tensile strength. A top coat is then applied. Depending on the UV exposure, an aliphatic topcoat must be added to prevent the membrane from chalking or degrading under the sun.

Pros

• Incredible Flexibility: PU membranes are highly elastic (capable of stretching up to 500% without tearing). This allows them to easily bridge hairline micro-cracks in the concrete as the building naturally expands and contracts due to thermal shock.
• 100% Seamless Finish: Because it is applied as a liquid, it cures into a single monolithic sheet with absolutely zero overlapping joints or seams, entirely eliminating the most common weak points found in sheet membranes.
• Perfect for Complex Geometries: It effortlessly molds around tight corners, protruding pipes, irregular shapes, and cramped spaces, making it ideal for residential balconies, planter boxes, bathroom floors, and roofs with complex architectural features.

Cons

• Highly Moisture Sensitive: Application is unforgivingly sensitive to moisture. The concrete substrate must be completely bone-dry before application. Rain during the curing phase can ruin the entire installation.
• UV Degradation: Standard aromatic PU coatings will degrade, chalk, and turn yellow when exposed to direct sunlight, requiring a more expensive, specialized aliphatic topcoat for UV protection.

How Much Does HDB Roof Leak Repair Cost in Singapore? (2026)

If your current waterproofing system has failed and you are facing an active leak, cost is usually the immediate concern. While prices fluctuate based on the specific contractor, the severity of the damage, and the exact dimensions of the affected area, here are the prevailing market rates in Singapore for 2026:

• PU Injection Grouting: Expect to pay between $300 to $800. This is a highly effective “no-hacking” method for sealing localized cracks. The cost scales depending on the total length and the number of injection points required. A single, small wet spot sits on the lower end, while multiple branching cracks spreading across a large ceiling will cost significantly more.
• Clear Penetrating Waterproofing: This non-invasive treatment typically ranges from $500 to $1,200 per bathroom or balcony, largely dependent on the total floor area. It seals existing tiles without demolition.
• Full Hacking and Re-Waterproofing: This qualifies as major renovation work. Prices generally fall between $2,500 to $6,000 per bathroom or affected roof section. The high cost accounts for the intensive manual labor required for demolition, concrete debris disposal, premium waterproofing materials, mandatory ponding tests, and re-tiling.

Note for Inter-Floor Leaks: Remember that under standard HDB guidelines, the cost of repairing inter-floor leaks (such as a leak originating from the neighbor’s bathroom above you) is split equally (50-50) between the upper and lower flat owners. For example, a $600 PU injection job means each neighbor is legally obligated to pay $300.

Step-by-Step: What Happens When You Call a Contractor

Dealing with a sudden leak is stressful, but understanding the professional repair process can give you peace of mind. Here is exactly what happens step-by-step when you engage a reputable, licensed contractor like Asia Tech Roofing:

Step 1: Free Site Inspection

A certified roofing technician will visit your property at a scheduled time. If it is an inter-floor leak, they will request to inspect both the lower unit’s affected ceiling and the upper unit’s floor to gain a comprehensive picture of the problem.

Step 2: Moisture Detection with Specialized Tools

Professional contractors rely on more than just visual checks. They will utilize advanced diagnostic tools such as thermal imaging cameras to see temperature variations caused by hidden water pooling inside the slab, and digital moisture meters to accurately measure the dampness levels within the concrete. This ensures the root cause is identified.

Step 3: Written Assessment and Quotation

Following the inspection, you will receive a detailed written report outlining the findings, the recommended repair method (e.g., explaining whether PU grouting or full hacking is preferred), and a transparent, itemized quotation. There should be no hidden fees or high-pressure tactics.

Step 4: Work Execution

Once you accept the quotation, a date is set.

• For PU Grouting: The team will lay down protective sheets, drill small injection ports into the ceiling cracks, inject the expanding resin, clean up any excess foam, and patch the ceiling. This usually takes 1 to 3 days depending on complexity.
• For Hacking: The process will take 3 to 5 days, involving heavy hacking, debris removal, membrane application, overnight ponding tests, and precision re-screeding or re-tiling.

Step 5: Post-Work Warranty

A reliable contractor stands behind their work. Upon completion, you will receive a formal, written warranty document. If the leak recurs within the specified warranty period, the contractor is contractually obligated to return and rectify the issue at no additional cost.

How to Prevent Future HDB Leaks

Proactive maintenance can significantly extend the lifespan of your property’s waterproofing and save you thousands of dollars in emergency repairs down the line.

• Annual Roof Inspections: Make it a strict habit to check your ceilings, walls, and accessible flat roofs once a year, particularly after the heavy monsoon season (December to January). Catching a small water stain early is exponentially cheaper than dealing with spalling concrete later.
• Clear Roof Drains Regularly: Blocked floor traps in toilets, balconies, or main roof scuppers cause water to pond and accumulate. Standing water puts immense hydrostatic pressure on the waterproofing membrane, severely accelerating its deterioration. Ensure drains are free of leaves and debris so water drains quickly.
• Re-Grout Bathroom Tiles: The cement grout lines between your bathroom tiles naturally degrade and wash away over time due to harsh cleaning chemicals. Re-grout your bathroom floor tiles every 3 to 5 years. Intact grout acts as the critical first line of defense against water seepage.
• Use Waterproof Paint: For high-humidity areas like kitchens and bathrooms, use specialized anti-mold and waterproof paints on the ceilings and upper walls. These advanced paints create a vapor barrier that heavily resists moisture penetration.

When to Call the Town Council vs. a Private Contractor

Understanding who is legally and financially liable for the repair responsibilities is crucial. HDB rules dictate specific jurisdictions depending on exactly where the leak originates. Here is a simple decision table to help you determine your immediate next steps:

Source of Leak	Who is Responsible?	Who to Contact
Top-Floor Main Roof: Water leaking from the ceiling directly beneath the building’s main RC roof.	Town Council	Town Council
External Building Walls: Rainwater seeping through the external, facade structural walls into your unit.	Town Council	Town Council
Inter-Floor (Wet Areas): Water leaking from the ceiling directly beneath a neighbor’s bathroom or kitchen.	Upper & Lower Flat Owners (50-50 Split)	Private Waterproofing Contractor

If the leak originates from common property (main roof or external walls), your Town Council is responsible for deploying their term contractors to resolve it. However, for private inter-floor leaks, you and your neighbor must jointly hire a private contractor to fix the shared floor slab.

Conclusion

For a completely exposed, large flat concrete roof, a Torch-On membrane often provides the best heavy-duty, long-term durability. However, if you are dealing with a complex roof structure with many corners, a balcony, or a planter box, PU liquid coatings are vastly superior.

Regardless of the material chosen, dealing with a ceiling leak requires patience, cooperation, and professional expertise. Ignoring the problem will only lead to extensive structural degradation and spiraling repair costs. Always consult a certified waterproofing specialist to assess your specific architectural situation and recommend the most effective, long-lasting solution tailored to your home.

Need a professional assessment? Book a free on-site inspection with Asia Tech Roofing. Our team of BCA-certified experts is ready to rapidly diagnose and permanently resolve your leak issues.

Frequently Asked Questions

Q: Which waterproofing method is cheaper: Torch-On or PU? A: Liquid-applied PU waterproofing is generally cheaper and faster to install for smaller or irregular areas. Torch-on membrane installation is more labor-intensive and requires specialized heating equipment, making it slightly more expensive upfront.

Q: Which waterproofing solution lasts longer in Singapore? A: Both methods are highly durable, but a professionally installed multi-layer torch-on membrane often has a slight edge in longevity, easily lasting 10 to 15 years. High-grade PU coatings are also excellent but may require a top-coat reapplication sooner due to UV degradation.

Q: Which method is better for HDB flat roofs? A: Torch-on membranes are frequently the preferred choice for expansive, flat HDB rooftops because they provide a highly uniform, heavy-duty barrier against standing water that often pools on large concrete slabs.

Q: Can Torch-On and PU waterproofing be combined? A: Yes, they can be combined for ultimate protection. Contractors sometimes use a torch-on membrane as the primary barrier and apply a reflective PU liquid top-coat over it to enhance UV resistance and seal all overlapping seams perfectly.
